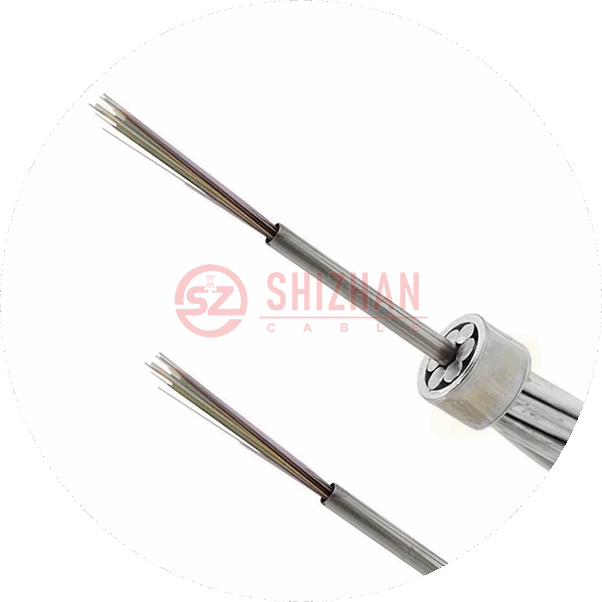

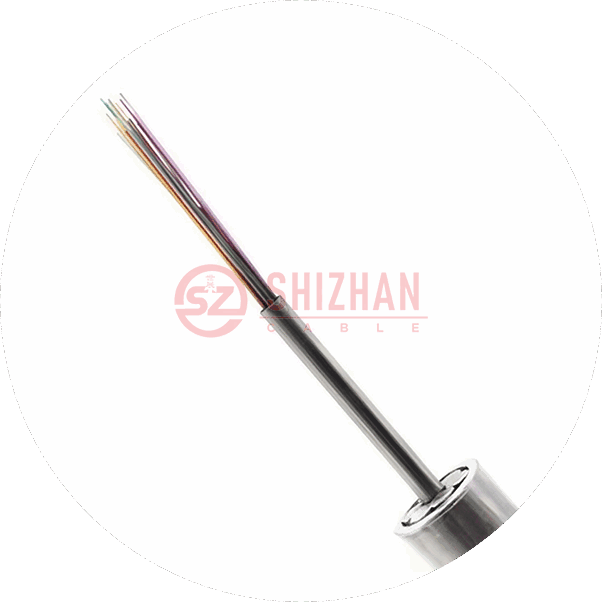

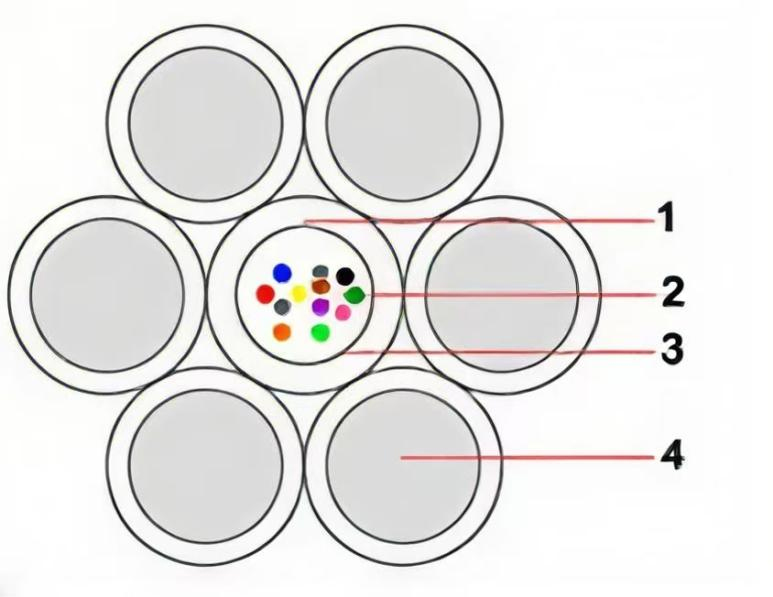

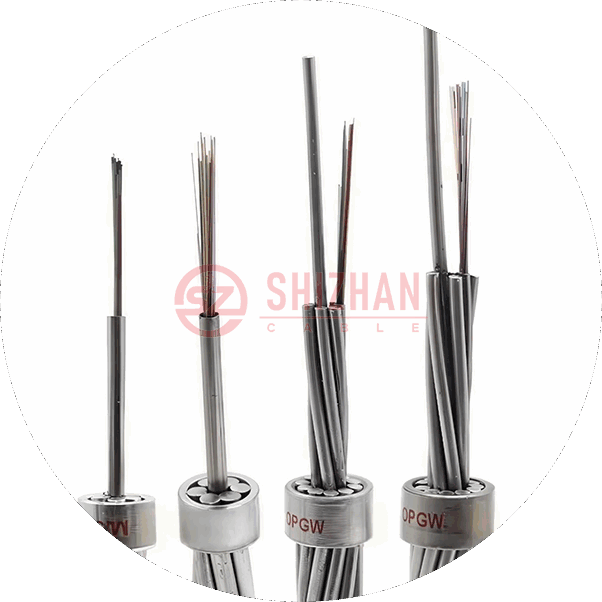

Central Stainless Steel Tube OPGW

Single  Layers

Cable Types

Fiber Count(Max)

Diameter(mm)

Weight(kg/km)

RTS(KN)

Short Circuit(kA2s)

OPGW-32[40.6;4.7]

12

7.8

243

40.6

4.7

OPGW-42[54.0;8.4]

24

9

313

54

8.4

OPGW-42[43.5:10.6]

24

9

284

43.5

10.6

OPGW-54[678;13.9]

36

10.2

394

67.8

13.9

OPGW-54[55.9;175]

36

10.2

356

55.9

17.5

OPGW-61[73.7;175]

48

10.8

438

73.7

17.5

OPGW-61[55.1;24.5]

48

10.8

358

55.1

24.5

OPGW-68[80.8;21.7]

54

11.4

485

80.8

21.7

OPGW-75[63.0;36 3]

60

12

459

63

36.3

OPGW-76[54.5;41.7]

60

12

385

54.5

41.7

OPGW-79[51.2;49.5]

72

12.3

403

51.2

49.5

Double Layers

Cable Types

Fiber Count(Max)

Diameter(mm)

Weight(kg/km)

RTS(KN)

Short Circuit(kA2s)

OPGW-96[121.7;42.2]

12

13

671

121.7

42.2

OPGW-127[141.0;879]

24

15

825

141

87.9

OPGW-127[778;128.0]

24

15

547

77.8

128

OPGW-145[121.0;132.2]

28

16

857

121

132.2

OPGW-163[138.2;183.6]

36

17

910

138.2

183.6

OPGW-163[99.9;213.7]

36

17

694

99.9

213.7

OPGW-183[109.7;268.7]

48

18

775

109.7

268.7

OPGW-183[118.4;261.6]

48

18

895

118.4

261.6
